HOME > PRODUCT > APT series

TOPPING WELL



Innovative details

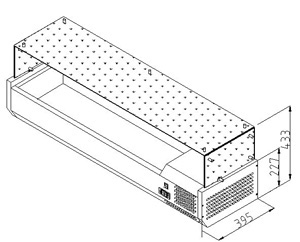

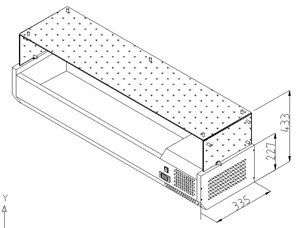

Dimension

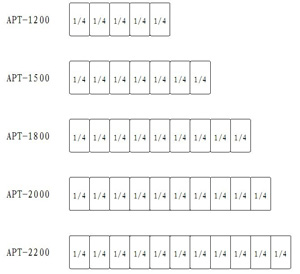

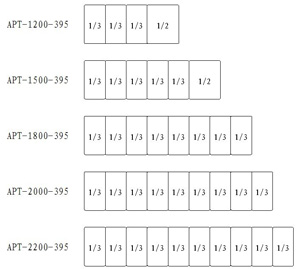

Dimension of pans as below：





Technical parameter

Model
Exterior Dimensions     （W×D×H）     (mm)
Internal Dimensions    （W×D×H）(mm)
Capacity (Litres or -GN-Pans)
Power (W)
Temperature Range (℃)
Environmental Temperature(℃)
Mode of Refrigeration
APT-1200-335
1200×335×433
845×245×150
1/4GN,5
170
＋2～＋8
32℃
Static
APT-1500-335
1500×335×433
1145×245×150
1/4GN,7
170
＋2～＋8
32℃
Static
APT-1800-335
1800×335×433
1445×245×150
1/4GN,9
170
＋2～＋8
32℃
Static
APT-2000-335
2000×335×433
1645×245×150
1/4GN,10
170
＋2～＋8
32℃
Static
APT-2200-335
2200×335×433
1845×245×150
1/4GN,11
170
＋2～＋8
32℃
Static
APT-1200-395
1200×395×433
845×305×150
1/3GN,3＋1/2GN,1
170
＋2～＋8
32℃
Static
PT-1500-395
1500×395×433
1145×305×150
1/3GN,5
+1/2GN,1
170
＋2～＋8
32℃
Static
PT-1800-395
1800×395×433
1445×305×150
1/3GN,8
170
＋2～＋8
32℃
Static
PT-2000-395
2000×395×433
1645×305×150
1/3GN,9
170
＋2～＋8
32℃
Static
PT-2200-395
2200×395×433
1845×305×150
1/3GN,10
170
＋2～＋8
32℃
Static



Features

  •  304 Grade Stainless Steel construction
  •  Glass sneeze canopy (user to assemble)

Options

  • Gastronomy pan
